This post will help you with Veritas Cluster Server 6.2 (VCS) Installation on RHEL7.

If you are interested in learning, Request you to go through the below recommended tutorial.




This article shows you how to install Veritas Cluster Server (VCS) on RHEL7. Installation of Veritas Cluster server on RHEL7 is similar to install on other old release of RedHat. In the next post, we will show you how to configure two node Veritas Cluster Server on RHEL7.

Veritas Cluster Server 6.2 (VCS) Installation on RHEL7


Our Lab Environment:
1. Two server nodes (node1 and node2) with RHEL 7.0 - 64 Bit
2. Symantec Storage Foundation with High Availability (SFHA) 6.2
3. Yum repo enabled using ISO media to install required OS RPMS.

Requirements to install Veritas Cluster Server on RHEL7.

Required minimum OS/Kernel Versions:
RHEL7 GA (3.10.0-123.el7)

Required OS RPMS:
bc-1.06.95-13.el7.x86_64
coreutils-8.22-11.el7.x86_64
ed-1.9-4.el7.x86_64
findutils-4.5.11-3.el7.x86_64
glibc-2.17-55.el7.i686
glibc-2.17-55.el7.x86_64
kmod-14-9.el7.x86_64
ksh-20120801-19.el7.x86_64
libacl-2.2.51-12.el7.i686
libgcc-4.8.2-16.el7.i686
libgcc-4.8.2-16.el7.x86_64
libstdc++-4.8.2-16.el7.i686
libstdc++-4.8.2-16.el7.x86_64
ncurses-libs-5.9-13.20130511.el7.x86_64
nss-softokn-freebl-3.15.4-2.el7.i686
pam-1.1.8-9.el7.i686
parted-3.1-17.el7.x86_64
pcre-8.32-12.el7.i686
perl-5.16.3-283.el7.x86_64
perl-Exporter-5.68-3.el7.noarch
policycoreutils-2.2.5-11.el7.x86_64
systemd-libs-208-11.el7.i686
xz-libs-5.1.2-8alpha.el7.i686

Step involved to install the Veritas Cluster Server (VCS) on RHEL7.
1. Download Symantec Storage Foundation with High Availability 6.2
2. Extracting the Installer Package.
3. Perform a Pre-Installation Check
4. Installation of Veritas Cluster Server (VCS) on two nodes.

1. Download Symantec Storage Foundation with High Availability 6.2 (Veritas Cluster Server).
Go to Symantec.com website and Signup free to download the Symantec Storage Foundation and Veritas Cluster Server 6.2 for linux or click here for the direct link to download.
Note: Now its been moved to Veritas company, So checkout this link youtube video with full instruction. Also you can find the recent link of Veritas Infoscale here.

2. Extracting the Installer Package
I have copied the downloaded file VRTS_SF_HA_Solutions_6.2_RHEL.tar.gz into the server node1 under /var/tmp. Extract the downloaded package and run the installer as shown in the image.
cd /root
tar -xf VRTS_SF_HA_Solutions_6.2_RHEL.tar.gz
cd dvd1-redhatlinux/rhel7_x86_64
./installer

veritas cluster server installation

Note : If you get an error as "Cannot find perl to execute", just move the "bin", "lib" folder from perl/RHEL7x8664/ to perl directory, because installer looking the perl files under perl folder, but it placed on perl/RHEL7x8664/
mv -f perl/RHEL7x8664/* perl/

3. Perform a Pre-Installation Check

Run the installer file as shown in the image and start the pre-installation check to ensure all requirements are done to continue the Installation of Veritas Cluster Server on RHEL7. When you run, it will prompt with many options as shown in the image.
install veritas cluster server on linux

Press "P" to perform a Pre-Installation check before installing the Veritas Cluster Server on two nodes.
how to install veritas cluster server on linux

Select "4" to choose the product "Symantec Storage Foundation and High Availability (SFHA).

Enter the Node names of the server on which we are going to install veritas cluster server. here we give our node names as "node1" and "node2" as shown in the image. You can give other nodes as well with space if you planned to configure more number of nodes.

Once enter the node names, installer will check the system communication between these nodes. Either ssh or rsh needs to be set up between these nodes for communication. To setup either one of this, root password will be asked.
download veritas cluster server for linux

Press "y" to agree to give the root password of other nodes.

Once you entered the root password of nodes, this will prompt to setup either SSH or RSH t enable the system communication. Press "1" to choose the communication method as "SSH".
step by step veritas cluster server setup

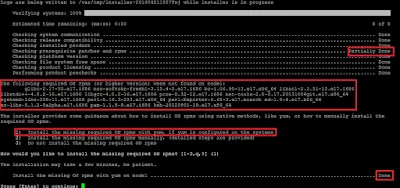

Again installer will start checking the pre installation check and will show you the status at the last column. Sometime it may report you as failed because of missing rpms and also that will give you an another option to install via yum or manually.

If you have yum server then select "1" to install the missing required rpms with yum. Please refer this link to configure the yum repo server on Linux.

Even if you are getting the errors as rpms are missing and failed to install with yum. Try to install the package manually, you could identify the issues.

Sometime it may get failed for keys and below solution was helped me to fix it.
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-beta
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-legacy-release
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-legacy-rhx
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-legacy-former
rpm --import /etc/pki/rpm-gpg/RPM-GPG-KEY-redhat-release

Again start the installer and do the steps from beginning. Once everything shows as "done", you could see the messages as "Precheck report completed" as shown in the image.
installation of vcs cluster on linux

4. Installation of Veritas Cluster Server (VCS) on two nodes.
Installer will ask you "Would you like to install SFHA on node1 and node2", Press "y" to install and again press "y" to agree the terms and conditions as shown in the image.
install vcs cluster on linux

Now press "2" to install the recommended rpms on all nodes.
how to configure vcs cluster on linux

Installer will show you the list of RPMS to be installed on all nodes. Press "Enter" to continue.
install vcs cluster with screenshots

Once all the packages are installed as shown in the image, it will prompt you to enter a valid license. If you have, Select "1" and give the valid key. If not, select "2" to enable keyless licensing. So here we choose "2" as shown in the image.
how to install veritas cluster with screenshots

Select the product mode "1" to choose "SF standard HA" and choose "n" to disable replication options.
veritas cluster server installation with examples

Once keyless license registered on all nodes, installer will prompt choose yes or no to configure the Veritas Cluster Server. If you want to continue configuration of veritas cluster server, give "y" to configure on all nodes, if not give "n" to finish the installation only. We will explain you the Configuration of Veritas Cluster server on RHEL7 in the next post.
veritas cluster server installation guide

Press "n" to skip the cleanup on other nodes and press again "n" to not view the summary file.

Thats all about the Installation of Veritas Cluster Server on RHEL7. In the next post, we will show you how to configure the Veritas Cluster Server on RHEL7.

Keep practicing and have fun. Leave your comments if any.
